20m cell on wheels COWS custmized height max load 600kg

  • 20m cell on wheels COWS custmized height max load 600kg
  • 20m cell on wheels COWS custmized height max load 600kg
  • 20m cell on wheels COWS custmized height max load 600kg
  • 20m cell on wheels COWS custmized height max load 600kg
  • 20m cell on wheels COWS custmized height max load 600kg
  • 20m cell on wheels COWS custmized height max load 600kg
원래 장소 중국
브랜드 이름 QJ
모델 번호 QJ20
최소 주문 수량 1세트
가격 USD20000
포장 세부 사항 대부분
배달 시간 30일
지불 조건 신용장, 전신환
공급 능력 5개 세트 / 달
제품 상세 정보
재료 강철 타워형 둥근 극
탑 텔레스코픽 구동 유압
트레일러 선택 과목 대피소 예
색상 양육권
강조하다

20m cell on wheels with 600kg load

,

custom height cell on wheels

,

mobile cell tower with max load
메시지를 남겨주세요
제품 설명

cell on wheels COWS custmized height max load 600kg



Wuxi Chinge is a professional manufacturer of telescopic telecom towers--both pole type and lattice type



height from 6m to 35m

payload up to 800kg



tower type:

20m cell on wheels COWS custmized height max load 600kg 0

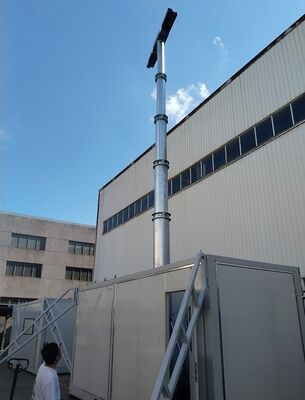

                                                                        pole type



20m cell on wheels COWS custmized height max load 600kg 1

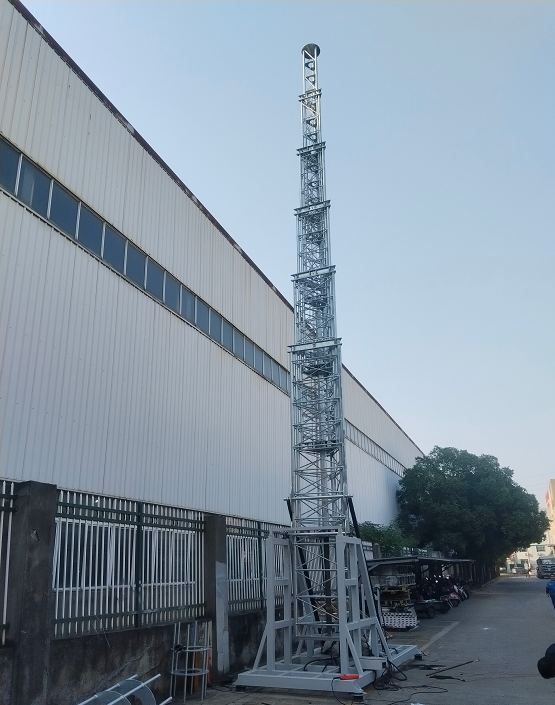

                                                                            lattice type

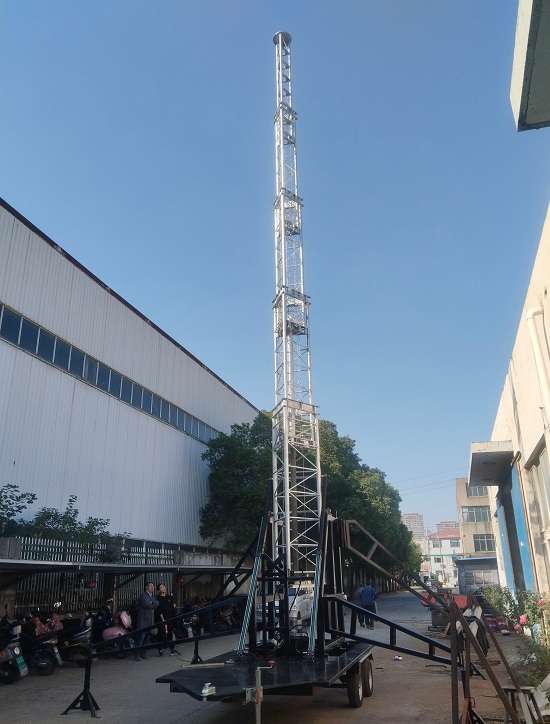

trailer :

Trailer---tow head optional for light truck/ pick car/tractor

Chassis Length: 8.0m Width: 2.20m Height: 0.6m

Max. gross weight: 5500 kg.

Axles: 2

weight division: 500 kg. per m2

Tires: all terrain 8 plus 1 spare

Brakes: compressed air

Lighting: 12V LED lighting

Electric plug: civil power inlet

electric brake

Towing arm: flat(customized)

Finish: painted black or customized color

Landing gear: 4 pcs

stabilizer 4 pcs

Tool box

Foot steps

20m cell on wheels COWS custmized height max load 600kg 2

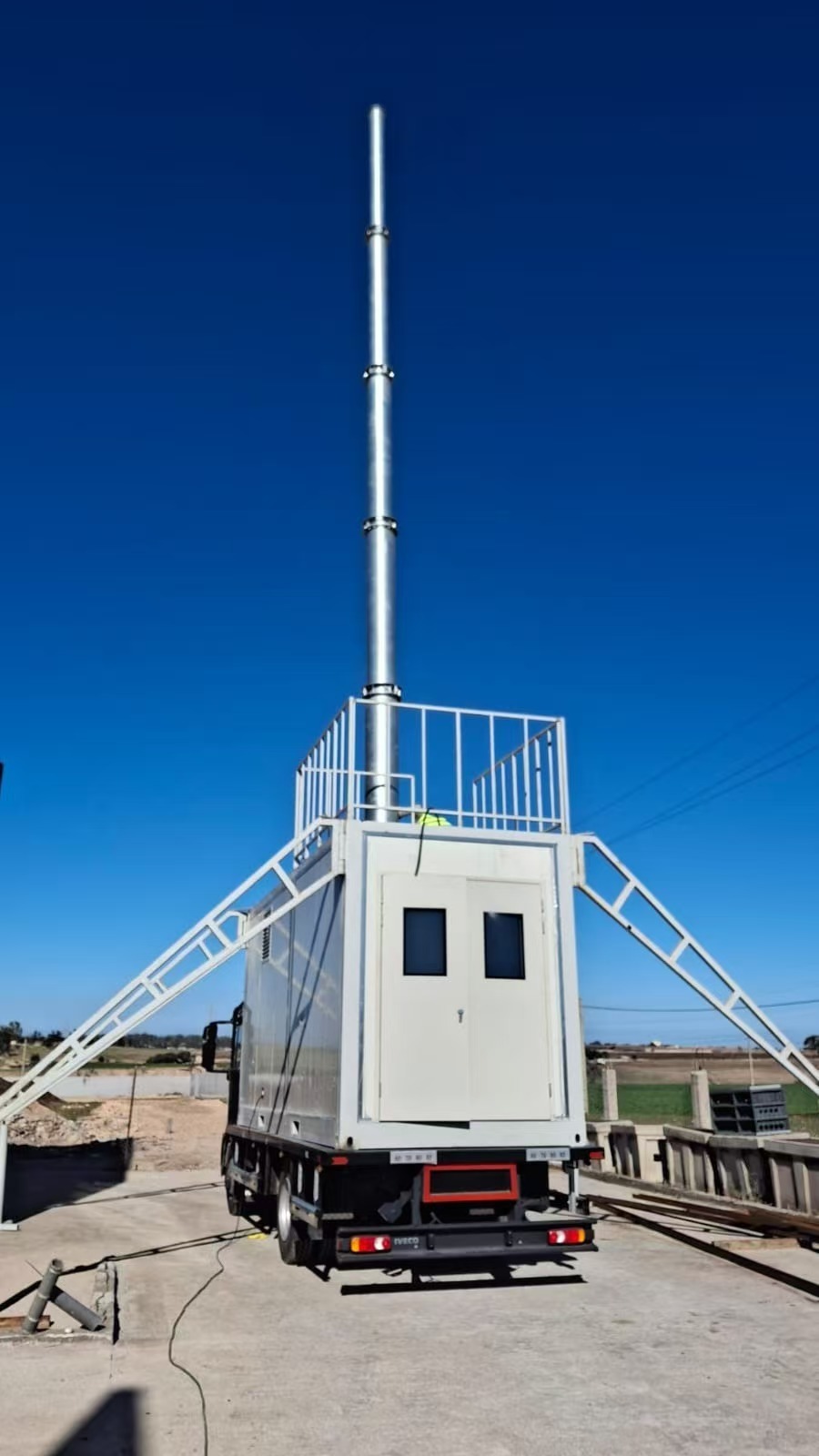

shelter

20m cell on wheels COWS custmized height max load 600kg 3

20m cell on wheels COWS custmized height max load 600kg 420m cell on wheels COWS custmized height max load 600kg 5

20m cell on wheels COWS custmized height max load 600kg 6



configurations:

Electric system

Cabinets: 1000x600mm

Input: 5pin 63A male (incl. 32A-63A adaptor)

PDB: 6 breaker incl. main switch and overvoltage protection

Output: female 3pin 16A, 3 per cabinet

sound & light alarm during liting the tower, angle sensor to check the verticality, if the tower decline to certain degree, it will alarm

socket: international standard sockets

Light Wiring

Cooling: forced-air system

Earthing Cable management: Earthing bars and cable tray around ceiling

Electric components and accessories spect:

All sockets in shelter are Schneider series 56 industrial swithces

  1. AC haier brand 5HP inverter split type
  2. Main Distribution Board with change over switch

Include: breaker 63A 4P with voltage protection *1

4 pole CB 50A for rectifier *1

2 pole CB 16A for rectifier *1

2 pole CB 10A for rectifier *1

1 pole CB 10A for rectifier *1

1 pole CB 10A for rectifier *1

A busubar *1

100/5A amper meter with 100/5A current transformer *3units

Volt meter*1

Indication lamps with switch *1

Main fail relay *1

63A 4P AC1 ratws contactor *1

32A 1 P MCCB , equip with 40A/300mA earth leakage circuit breaker *1 unit

32A 3P stand by *2

Surher srrestor with 100A fuse *1

Box coated water and dust proof at IP55 grade

Anti-lighting management:

Copper rod at the top of the tower, body use 25m2 copper wire insulated.

Cable management:



accessories:

20m cell on wheels COWS custmized height max load 600kg 720m cell on wheels COWS custmized height max load 600kg 820m cell on wheels COWS custmized height max load 600kg 9
